ProNex DNA QC Assay

特色/優勢

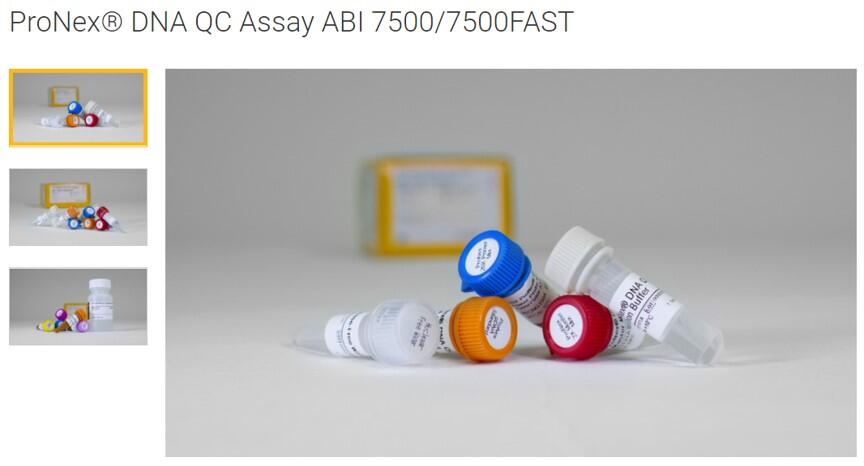

ProNex® DNA QC Assay

1. Bio-Rad CFX96 or ABI 7500/7500FAST, QuantStudio5,6

2. Cat#NG1001 Calibration Kit only for ABI instrument calibration

3. Process Your Data with the ProNex® DNA QC Assay Analysis Software(兩個平台產生的data可用同一套分析軟體)

•Free to download but customers are required to register

Evaluate Quality and Quantity of gDNA from Degraded Samples

1. Human-specific, multiplexed probe-based qPCR assay with internal positive control(IPC)

2. Detect 75bp, 150bp and 300bp human genomic DNA sequences

3. Evaluate your samples for amplifiability and predict downstream assay success

Powerful results from one reaction well

左邊看FFPE樣本#1 與FFPE樣本#2 的degrade程度，該怎麼看?

藉由測完DNA濃度之後，利用75bp target/300bp target or/and 75bp target/150bp target所得的ratio值來判斷，ratio值越大表示degradation樣本越多。

ex. 7.1/2=3.5 23.2/0.1=232，由此可見FFPE樣本#2的degradation程度較嚴重。

上下兩圖是類似的概念圖，下圖Y軸是75/300 ratio 同等於上圖的小:大片段的ratio，其X軸各自加入不同比例的gDNA進去(上下圖X軸都是一樣的)，看ratio值的差異。

可以發現0%是沒有加gDNA進去的，相對ratio值很高，越往右邊ratio越來越低，表示ccfDNA樣本裡面的gDNA越來越多(ratio越小，表示樣本中有gDNA污染的越多)。

DNA QC Assay –System Information

1. Single-well, multiplexed assay

2. 3 targets for measurement of degradation or genomic DNA contamination: 75 bp, 150 bp, and 300 bp

3. Built-in internal positive control(IPC) to measure inhibition

4. Sensitivity to 3.2 pg/μl input

5. Master mix with simple set up

6. As little as 1 μl per amplification of sample

ProNex®Size-Selective Purification System

ProNex® NGS Library Quant Kit 500 reactions Cat# NG1201
